Ecos Link Solutions is a trusted Malaysian engineering partner specializing in four core verticals: Continuous Emissions Monitoring Systems (CEMS), Industrial IoT solutions, system integration, and process analyzers. We help industries achieve regulatory compliance, operational efficiency, and digital transformation. With strong technical expertise and partnerships with global brands, we deliver tailored solutions from design to after-sales support.
Multi component analyser MCA 10
- Extractive multicomponent analysis system
- Hot-wet gas analysis
- QAL 1 & MCERTS according to EN 15267-3
- HF, HCl, H2O, NMVOC, CO, CO2, NO, NO2, NOx, N2O, NH3, SO2 and O2
Dust monitoring device PFM 02 Ex
- Filter monitor for in-situ dust measurement with EC-Type Examination Certificate (IBExU04ATEX1249 X)
- Approved for Ex II 1 / 3D Ex ia / tc IIIC T74 ° C Da / Dc
- Compact device
- Display showing the measured value in mg/m³ or in line diagram
Flow measuring device FMD 09
- Continuous measurement of exhaust gas velocity, exhaust gas flow, pressure and temperature
- Compact unit with differential pressure probe
- Can be used in flue gases with high dust contents
- Suitability tested and certified according to EN 15267-3 (QAL1)
- Approved for all plants covered by IED
ABB EL3020 Analyzer
Features gas-filled opto-pneumatic radiation detectors. Detector filling corresponds to the gas being measured, which means that the detector provides optimum sensitivity and high selectivity compared with the other gas components in the sample.
- Detectors with different measurement principles for numerous process and emission monitoring applications
- Up to five measurement components per gas analyzer
- Suitable for measuring flammable gases
- Automatic calibration including pump and valve control
ABB AO2040
Advance Optima Continuous Gas Analyser AO2000 Series.The ABB Advance Optima AO2040 is part of the AO2000 series, a modular product line designed for continuous process gas analysis. The series is highly versatile and offers a wide range of analyzer modules for a variety of applications, including process and emissions monitoring. AO2040 is specifically configured for use in Zone 1,21 and 2,22 environments, where explosive environments are possible.
OPACITY QAL1 APPROVED PARTICULATE CEM - STACK 710
QAL1 approved particulate CEM which meets US EPA PS-1 requirements for Opacity monitoring from combustion stack.
Robust multi corner cube reflector provides truer reflection of transmitted light compared to traditional "mirror type" reflectors providing greater confidence in measurement.
PARTICULATE CEM FOR WET GAS STREAMS - STACK 181 WS
US EPA PS11 capable ProScatter™ particulate CEM for the extractive sampling and measurement of particulate in saturated wet gas streams.
STACKFLOW 400 𝘍𝘭𝘶𝘦𝘚𝘰𝘯𝘪𝘤™ APPROVED FLUE GAS VELOCITY CEM
Approved flue gas velocity CEM for stack velocity, volumetric flow and pollutant mass release calculations when linked to Gas and Dust CEMS.
MIR 9000e NDIR-GFC Multi-Gas Analyzer
Eco-designed, ultra-compact, smart & connected instrument, the MIR 9000e is your next tool to measure combustion exhaust gas from boiler, or gas from different industrial furnaces and process applications.
It offers superior metrological performances for the simultaneous multi-gas measurement of: NOx, SO2, CO, O2, residual H2O, CO2, CH4 and N2O (greenhouse gases).
IN-SITU CLOSE-COUPLED MULTI-GAS ANALYZER - MIR IS
A complete "all in one compact" system, for multi-gas measurements, based on the field-proven MIR 9000 analyzer and on-board SEC sampling system.
Fast & simultaneous measurement of up to 10 gases among: HCl, NO, NO2 (NOx), SO2, CO, CO2, HC, CH4 (TOC), HF, N2O, O2, at the sampling location.
Integrated sample drying & system conditioning; no sample line necessary.
DUSTHUNTER SP100
- Installation from one side
- For very low to medium dust concentrations
- Automated check of zero and reference point
- Contamination check
- Hastelloy probe available for corrosive gases
- For small to medium duct diameters
- Device version for Ex zone 2
DUSTHUNTER T100
- For medium to high dust concentrations
- Integrated contamination check
- Automated check of zero and reference point
- For small to large measuring distances

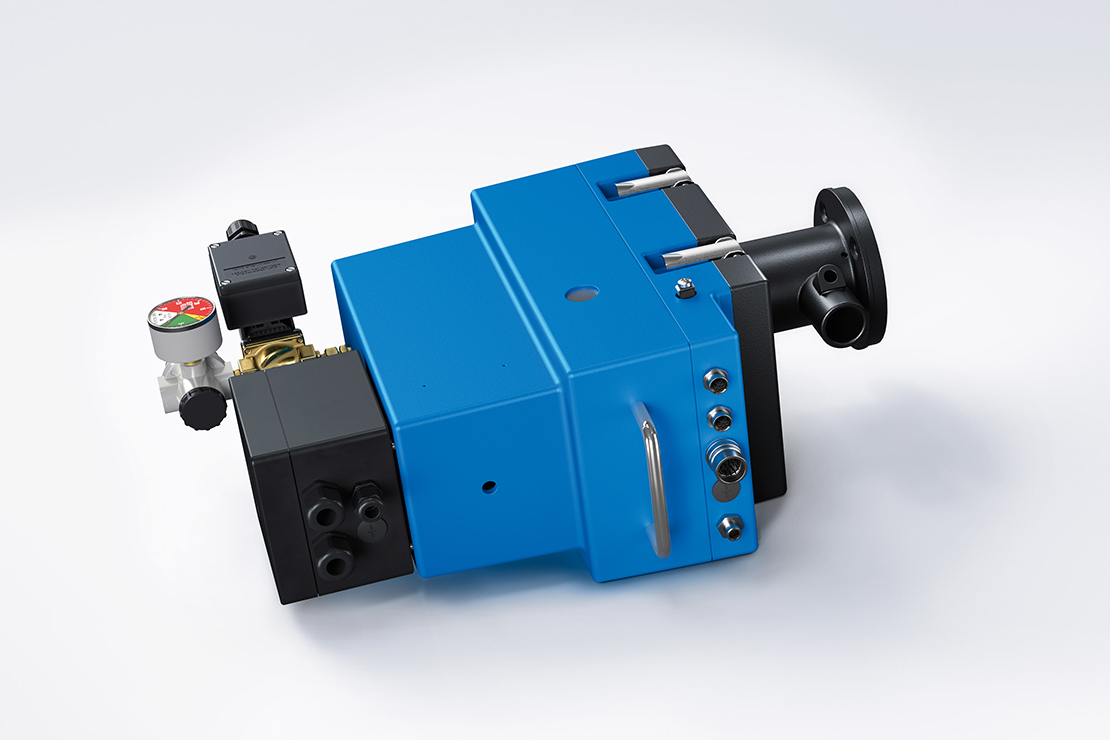

D-R 290
Dust and opacity monitor
For continuous, contactless dust and opacity measurement at medium to high concentrations in dry flue and process gases. Also suitable for difficult plant conditions. Exceeds EPA and ASTM standards.
- Continuous dust measurement
- Smallest certified measuring range 0 … 15 mg/m3
- Automatic measurement and correction of contamination
- Automatic check functions
- Contactless measurement
- Maintenance and linearity check without disassembly
- Exceeds EPA and ASTM standards
The D-R 290 was developed to comply with 40CFR60, App. B, PS-1 and ASTM D6216-20 Annex A1 “Standard Practice for Opacity Manufactures to Certify Conformance with Design and Performance Specifications."

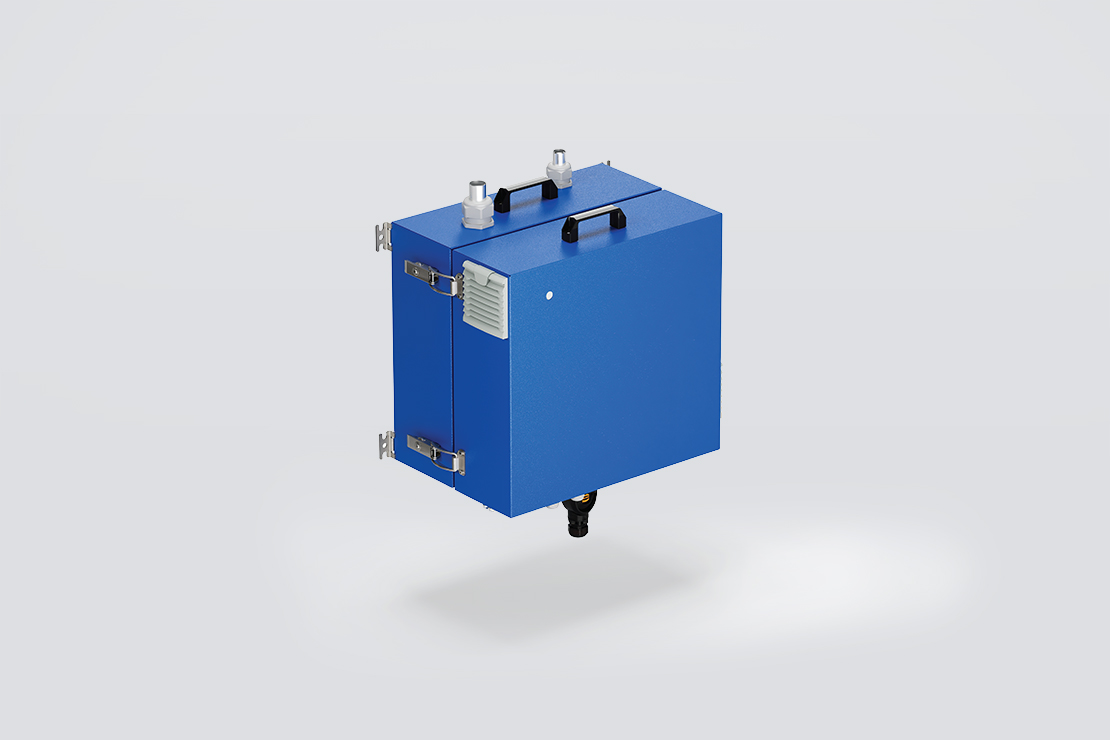

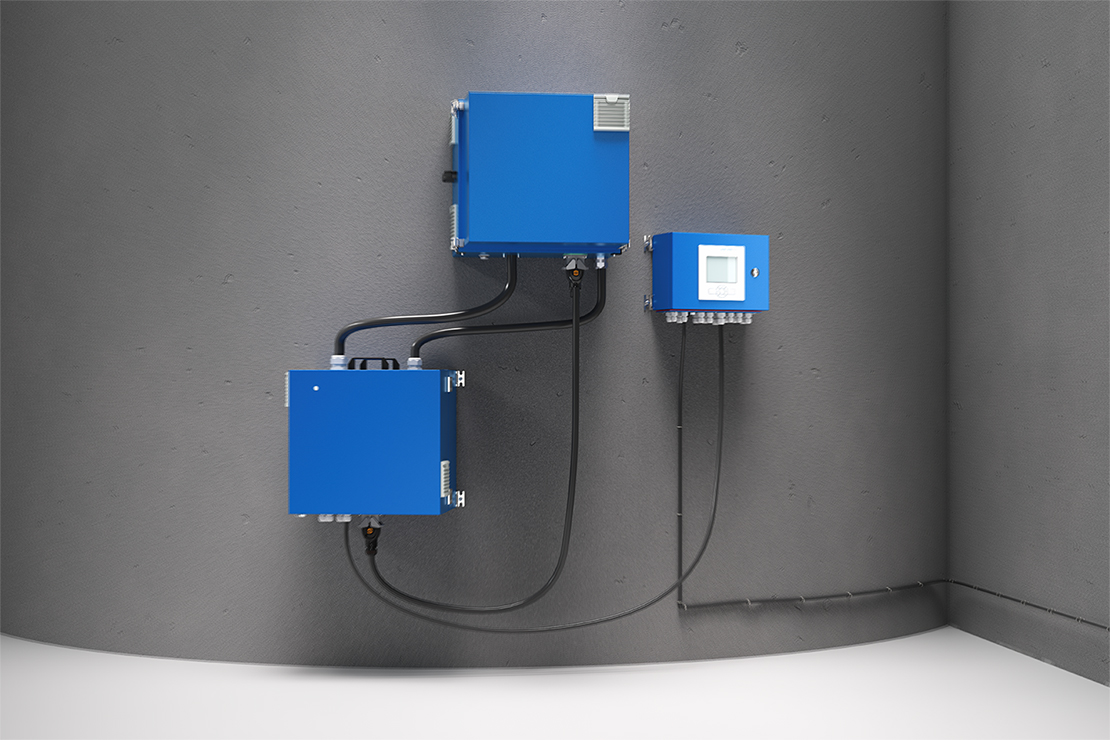

D-R 909
Extractive dust monitor
Extractive continuous dust measurement of small to medium dust concentrations in wet flue and process gases even under difficult plant conditions.
- QAL1-certified in accordance with EN 15267
- Automatic control functions
- Flow-optimized design prevents the deposit of impurities
- Efficient operation due to electronically controlled blowers and heaters
- Modular system of compact units

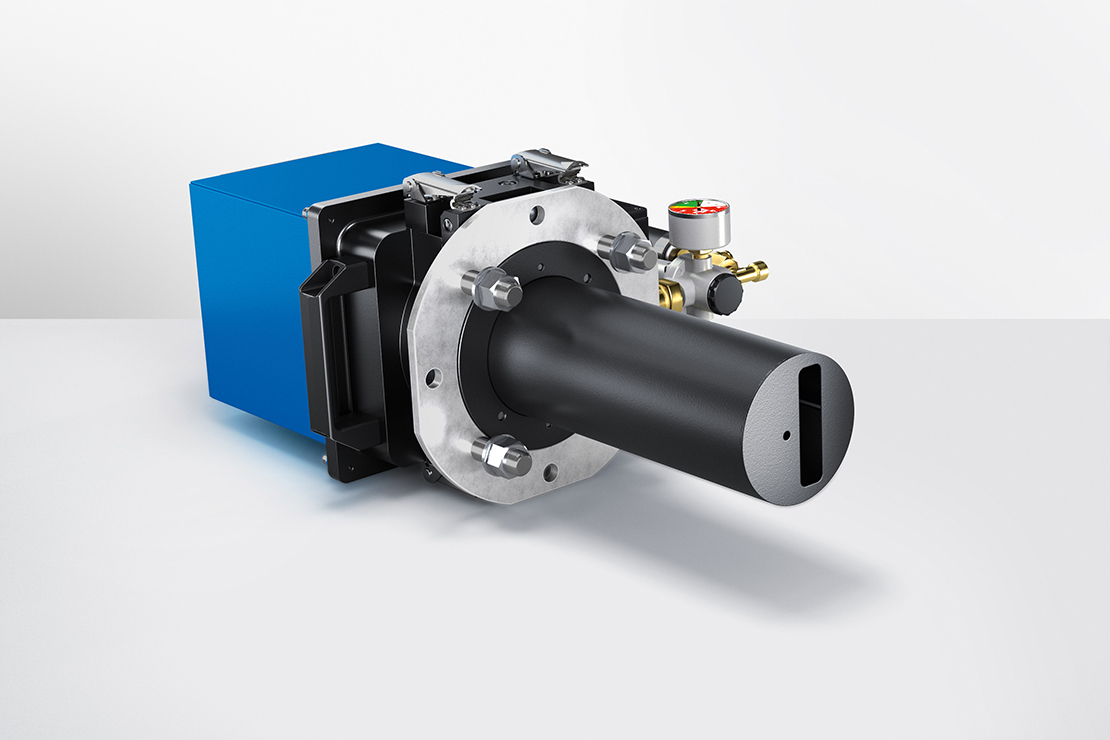

D-R 320
In situ dust monitor
For continuous, contactless measurement of low to medium dust concentrations in dry flue and process gases. Also suitable for corrosive gases and potentially explosive atmospheres.
- Continuous dust measurement
- Smallest certified measuring range 0 … 7.5 mg/m3
- Single-sided installation without optical alignment
- Automatic check functions
- Continuous, integrated purge air monitoring and control
- Maintenance and linearity check without disassembly
- Contactless measurement

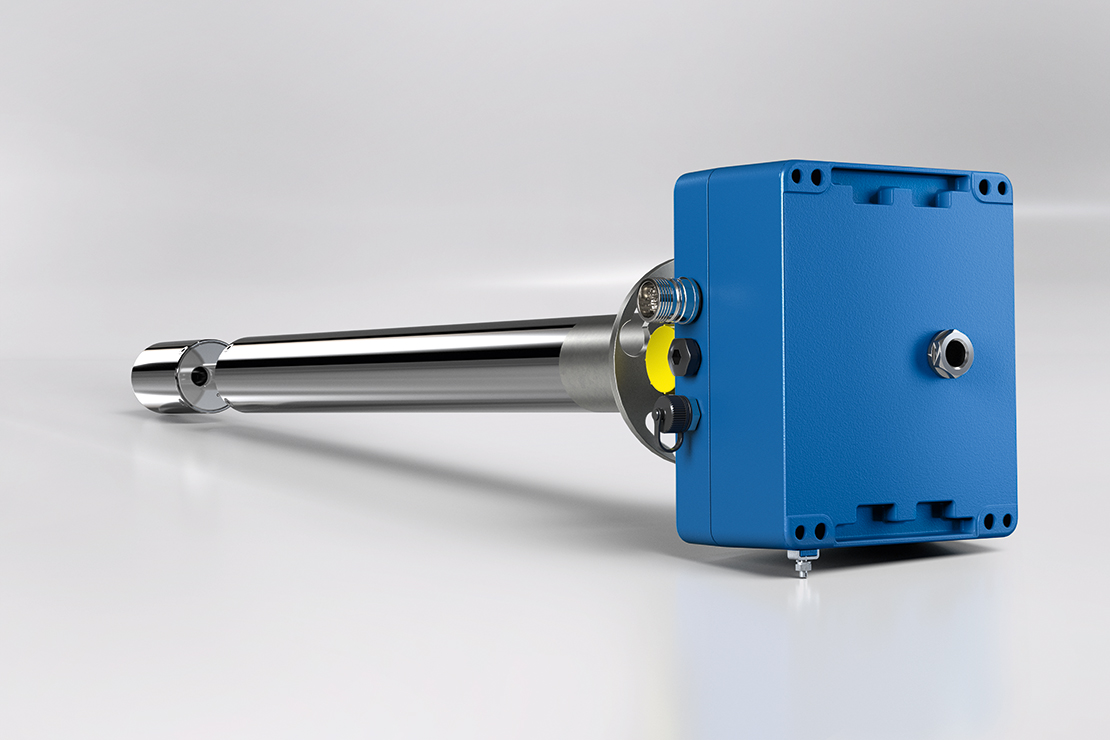

D-R 808
In situ dust monitor
Certified and approved PM CEMS providing very high quality monitoring of very low to medium particulate concentrations in dry flue gas flows.
- Certified for the range of 0-7.5 mg/m3 the lowest range achievable for a dust CEMS (Continuous Emissions Monitoring System)
- Certified and approved dust analyzer for ensuring plant compliance with international standards for industrial emissions
- New: ATEX & IECEx certified to operate safely in hazardous environments, minimizing the risk of ignition and explosion

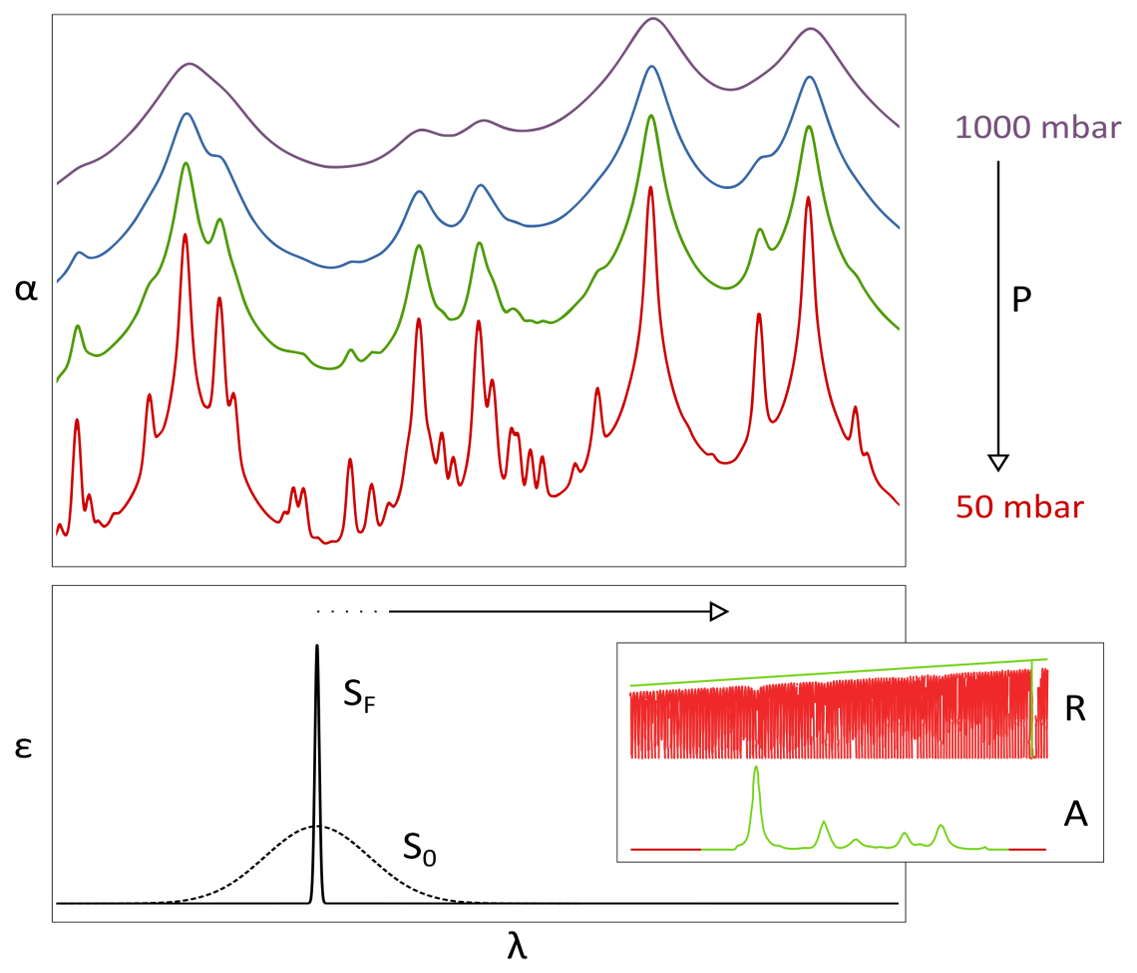

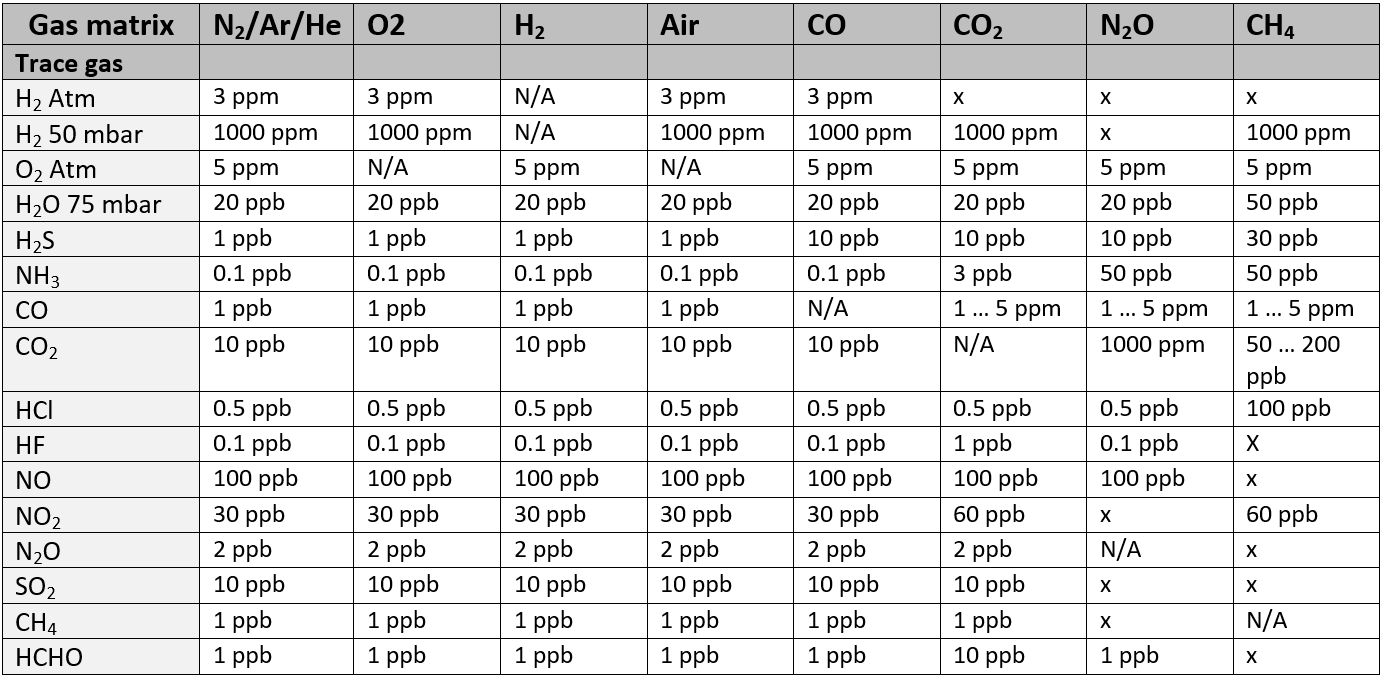

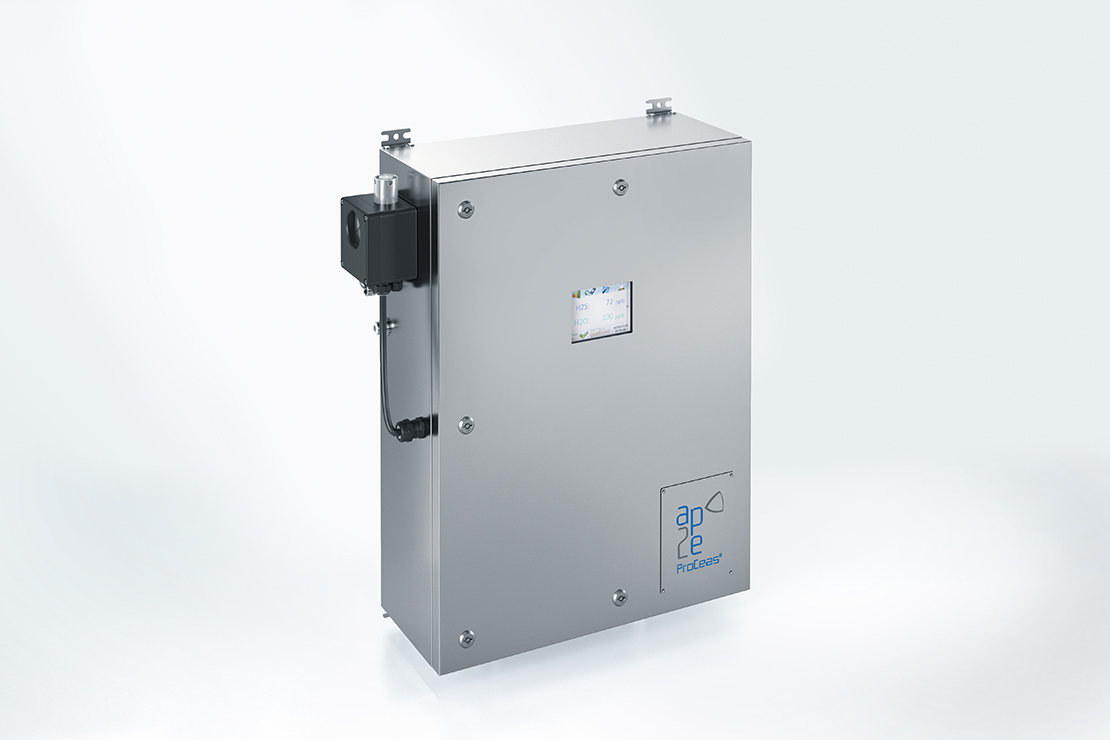

ProCeas
Laser infrared spectrometer
Fully pre-calibrated multi-component gas analyzer for process gas analysis. Suitable for a wide range of gases and applications.
- Continuous multigas measurement
- High resolution IR laser technology
- Patented OFCEAS TDL technology
- No optical moving parts
- Direct measurement without degrading the sample (no scrubber needed)
- Patented low pressure sampling system
- Maintenance: Yearly
ProCeas Air
Laser infrared spectrometer
Fully pre-calibrated multi-component gas analyzer, e.g. for ambient air, workplace or greenhouse gas applications. Designed for low to medium gas concentrations.
- Direct and extractive measurement
- Continuous measurement
- Multi components
- High resolution laser technology
- Patented OFCEAS IR laser technology
- No optical moving parts
- Patented low pressure sampling system
- No instrument air consumption
- Up to 16 lines for multiplexed measurement
- Maintenance: yearly
